Take-home Exercise 4e - plotting for project poster

Author

Imran Ibrahim

Published

March 22, 2024

Modified

March 28, 2024

Emerging Hot Spot Analysis: sfdep methods

Data Loading and Prep

pacman::p_load(tidyverse, dplyr ,
               sf, lubridate,plotly,
               tmap, spdep, sfdep, patchwork, knitr, forcats)

mmr_shp_mimu_2 <-  st_read(dsn = "data/geospatial3",
                  layer = "mmr_polbnda_adm2_250k_mimu")

Reading layer `mmr_polbnda_adm2_250k_mimu' from data source
  `C:\imranmi\ISSS608-VAA\Take-home-ex\Take-home-Ex4e\data\geospatial3'
  using driver `ESRI Shapefile'
Simple feature collection with 80 features and 7 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 92.1721 ymin: 9.696844 xmax: 101.17 ymax: 28.54554
Geodetic CRS:  WGS 84

Data Wrangle for quarterly data

As per project requirements, we will sync the time frame for this analysis to be the same as our previous LISA analysis. Therefore, we will set up the data set to be for 2021-2023, and in quarterly periods

Events_2 <- read_csv("data/df1_complete.csv")

Since this data set has been filled up for missing values, using tidyr::complete() , I can proceed to use the standard spacetime constructor ie spacetime()

First, loc_col identifier needs to be the same name for both data and shape file.

Event_type == Battles

Events_2 <- Events_2 %>%
        filter(event_type == "Battles") %>%
        rename(DT=admin2) %>%
        select(-event_type, -year, -Fatalities)

Quarterly_spt <- spacetime(Events_2, mmr_shp_mimu_2,
                      .loc_col = "DT",
                      .time_col = "quarter")

is_spacetime_cube(Quarterly_spt)

[1] TRUE

Computing Gi*

Next, we will compute the local Gi* statistics.

Deriving the spatial weights

The code below will be used to identify neighbors and to derive an inverse distance weights.

Quarterly_nb <- Quarterly_spt %>%
  activate("geometry") %>%
  mutate(nb = include_self(st_contiguity(geometry)),
         wt = st_inverse_distance(nb, geometry,
                                  scale = 1,
                                  alpha = 1),
         .before = 1) %>%
  set_nbs("nb") %>%
  set_wts("wt")

#for Quarterly admin 2
gi_stars3 <- Quarterly_nb %>%
  group_by(quarter) %>%
  mutate(gi_star = local_gstar_perm(
    Incidents, nb, wt)) %>%
  tidyr::unnest(gi_star)

gi_stars3

# A tibble: 960 × 15
# Groups:   quarter [12]
   quarter DT      Incidents nb    wt    gi_star cluster    e_gi  var_gi std_dev
     <dbl> <chr>       <dbl> <lis> <lis>   <dbl> <fct>     <dbl>   <dbl>   <dbl>
 1   20211 Hintha…         0 <int> <dbl>  -0.938 Low     0.00878 1.38e-4 -0.747
 2   20211 Labutta         0 <int> <dbl>  -0.645 Low     0.00677 2.30e-4 -0.447
 3   20211 Maubin          0 <int> <dbl>  -0.938 Low     0.00973 1.47e-4 -0.803
 4   20211 Myaung…         0 <int> <dbl>  -0.801 Low     0.00832 1.66e-4 -0.645
 5   20211 Pathein         0 <int> <dbl>  -0.801 Low     0.00840 1.72e-4 -0.641
 6   20211 Pyapon          0 <int> <dbl>  -0.801 Low     0.00859 1.92e-4 -0.621
 7   20211 Bago            1 <int> <dbl>   0.321 Low     0.0109  1.34e-4  0.506
 8   20211 Taungoo         8 <int> <dbl>   0.432 High    0.0211  1.31e-4 -0.279
 9   20211 Pyay            0 <int> <dbl>  -0.337 Low     0.00970 1.64e-4 -0.158
10   20211 Thayar…         0 <int> <dbl>  -0.270 Low     0.00904 1.58e-4 -0.0330
# ℹ 950 more rows
# ℹ 5 more variables: p_value <dbl>, p_sim <dbl>, p_folded_sim <dbl>,
#   skewness <dbl>, kurtosis <dbl>

Mann-Kendall Test

With these Gi* measures we can then evaluate each location for a trend using the Mann-Kendall test.

The code chunk below uses Hinthada region.

cbg3 <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Hinthada") |>
  select(DT, quarter, gi_star)

Next, we plot the result by using ggplotly() of plotly package.

Hinthada district quarterly

p3 <- ggplot(data = cbg3,
       aes(x = quarter,
           y = gi_star)) +
  geom_line() +
  theme_light()

ggplotly(p3)

Mann Kendall test for Hinthada district-quarterly

cbg3 %>%
  summarise(mk = list(
    unclass(
      Kendall::MannKendall(gi_star)))) %>%
  tidyr::unnest_wider(mk)

# A tibble: 1 × 5
     tau    sl     S     D  varS
   <dbl> <dbl> <dbl> <dbl> <dbl>
1 -0.242 0.304   -16  66.0  213.

Values of Mann Kendall test.

`tau`	Kendall’s tau statistic
`sl`	two-sided p-value
`S`	Kendall Score
`D`	denominator, tau=S/D
`varS`	variance of S

ehsa3 <- gi_stars3 %>%
  group_by(DT) %>%
  summarise(mk = list(
    unclass(
      Kendall::MannKendall(gi_star)))) %>%
  tidyr::unnest_wider(mk)

ehsa3

# A tibble: 80 × 6
   DT                              tau     sl     S     D  varS
   <chr>                         <dbl>  <dbl> <dbl> <dbl> <dbl>
 1 Bago                        -0.0606 0.837     -4  66.0  213.
 2 Bawlake                     -0.333  0.150    -22  66.0  213.
 3 Bhamo                       -0.303  0.193    -20  66.0  213.
 4 Danu Self-Administered Zone -0.394  0.0865   -26  66.0  213.
 5 Dawei                        0.515  0.0236    34  66.0  213.
 6 Det Khi Na                  -0.212  0.373    -14  66.0  213.
 7 Falam                       -0.333  0.150    -22  66.0  213.
 8 Gangaw                       0.121  0.631      8  66.0  213.
 9 Hakha                       -0.0303 0.945     -2  66.0  213.
10 Hinthada                    -0.242  0.304    -16  66.0  213.
# ℹ 70 more rows

Arrange to show significant emerging hot/cold spots

Admin 2 districts-quarterly

emerging3 <- ehsa3 %>%
  arrange(sl, abs(tau)) %>%
  slice(1:5)

print(emerging3)

# A tibble: 5 × 6
  DT               tau      sl     S     D  varS
  <chr>          <dbl>   <dbl> <dbl> <dbl> <dbl>
1 Mandalay       0.667 0.00319    44  66.0  213.
2 Maubin        -0.667 0.00319   -44  66.0  213.
3 Pyapon        -0.667 0.00319   -44  66.0  213.
4 Pyinoolwin     0.636 0.00493    42  66.0  213.
5 Yangon (West) -0.636 0.00493   -42  66.0  213.

emerging3 <- ehsa3 %>%
  arrange(sl, abs(tau)) %>%
  slice(1:5)

# Print as a more formal table
kable(emerging3)

DT	tau	sl	S	D	varS
Mandalay	0.6666666	0.0031919	44	66.00001	212.6667
Maubin	-0.6666666	0.0031920	-44	66.00001	212.6667
Pyapon	-0.6666666	0.0031920	-44	66.00001	212.6667
Pyinoolwin	0.6363636	0.0049314	42	66.00001	212.6667
Yangon (West)	-0.6363636	0.0049315	-42	66.00001	212.6667

Since above identifies the top five districts of emerging hot spots, we can also do a combined plot of their GI* trends over the 3 years

Show the code

cbg1st <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Mandalay") |>
  select(DT, quarter, gi_star)

cbg2nd <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Maubin") |>
  select(DT, quarter, gi_star)

cbg3rd <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Pyapon") |>
  select(DT, quarter, gi_star)

cbg4th <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Pyinoolwin") |>
  select(DT, quarter, gi_star)

cbg5th <- gi_stars3 %>%
  ungroup() %>%
  filter(DT == "Yangon (West)") |>
  select(DT, quarter, gi_star)

Show the code

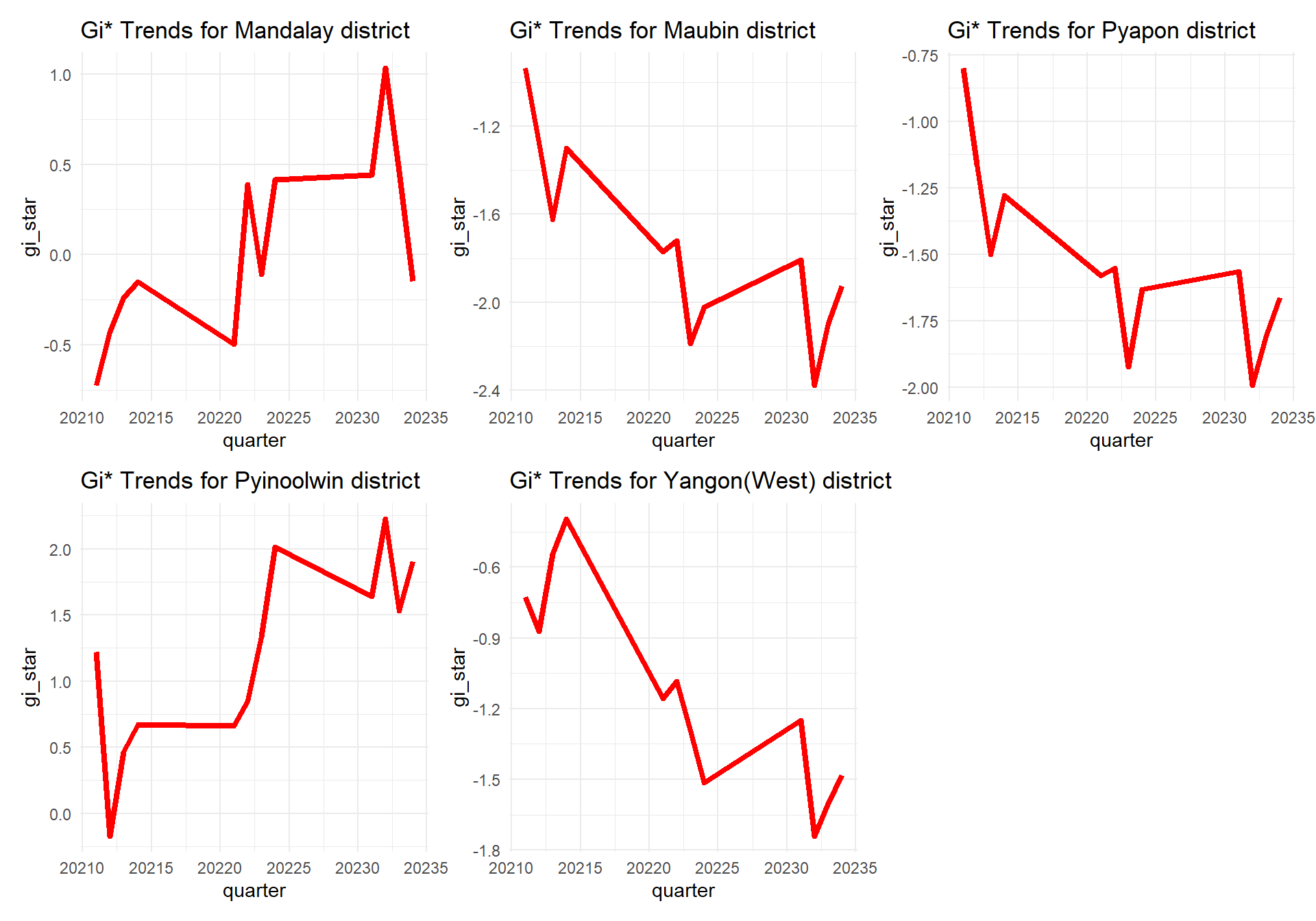

p1 <- ggplot(data = cbg1st,
       aes(x = quarter,
           y = gi_star)) +
  geom_line(colour = "red", size = 1.5) +
  theme_minimal() +
  ggtitle("Gi* Trends for Mandalay district")

p2 <- ggplot(data = cbg2nd,
       aes(x = quarter,
           y = gi_star)) +
  geom_line(colour = "red", size = 1.5) +
  theme_minimal() +
  ggtitle("Gi* Trends for Maubin district")

p3 <- ggplot(data = cbg3rd,
       aes(x = quarter,
           y = gi_star)) +
  geom_line(colour = "red", size = 1.5) +
  theme_minimal() +
  ggtitle("Gi* Trends for Pyapon district")

p4 <- ggplot(data = cbg4th,
       aes(x = quarter,
           y = gi_star)) +
  geom_line(colour = "red", size = 1.5) +
  theme_minimal() +
  ggtitle("Gi* Trends for Pyinoolwin district")

p5 <- ggplot(data = cbg5th,
       aes(x = quarter,
           y = gi_star)) +
  geom_line(colour = "red", size = 1.5) +
  theme_minimal() +
  ggtitle("Gi* Trends for Yangon(West) district")

patchwork <- (p1+p2+p3+p4+p5)

patchwork

Performing Emerging Hotspot Analysis

We will perform EHSA analysis by using emerging_hotspot_analysis() of sfdep package. It takes a spacetime object x (i.e. quarterly_spt), and the quoted name of the variable of interest (i.e. Incidents) for .var argument.

The k argument is used to specify the number of time lags which is set to 1 by default.

Lastly, nsim map numbers of simulation to be performed. (number of simulations of p-values)

Show the code

ehsa3_99 <- emerging_hotspot_analysis(
  x = Quarterly_spt,
  .var = "Incidents",
  k = 1,
  nsim = 99
)

ehsa3_199 <- emerging_hotspot_analysis(
  x = Quarterly_spt,
  .var = "Incidents",
  k = 1,
  nsim = 199
)

ehsa3_299 <- emerging_hotspot_analysis(
  x = Quarterly_spt,
  .var = "Incidents",
  k = 1,
  nsim = 299
)

ehsa3_399 <- emerging_hotspot_analysis(
  x = Quarterly_spt,
  .var = "Incidents",
  k = 1,
  nsim = 399
)

ehsa3_499 <- emerging_hotspot_analysis(
  x = Quarterly_spt,
  .var = "Incidents",
  k = 1,
  nsim = 499
)

Visualising the distribution of EHSA classes

Admin2 districts - quarterly

Visualising EHSA

In this section, we will learn how to visualise the geographic distribution EHSA classes. However, before we can do so, we need to join mmr_shp_mimu2 & ehsa3) together by using the code chunk below.

Show the code

mmr_ehsa99 <- mmr_shp_mimu_2 %>%
  left_join(ehsa3_99,
            by = join_by(DT == location))

mmr_ehsa199 <- mmr_shp_mimu_2 %>%
  left_join(ehsa3_199,
            by = join_by(DT == location))

mmr_ehsa299 <- mmr_shp_mimu_2 %>%
  left_join(ehsa3_299,
            by = join_by(DT == location))

mmr_ehsa399 <- mmr_shp_mimu_2 %>%
  left_join(ehsa3_399,
            by = join_by(DT == location))

filtering the significant p-values

Show the code

ehsa_sig99 <- mmr_ehsa99  %>%
  filter(p_value < 0.05)

ehsa_sig199 <- mmr_ehsa199  %>%
  filter(p_value < 0.05)

ehsa_sig299 <- mmr_ehsa299  %>%
  filter(p_value < 0.05)

ehsa_sig399 <- mmr_ehsa399  %>%
  filter(p_value < 0.05)

Show the code

ehsa3_99count <- ehsa_sig99 %>%
  mutate(count = 1) %>%
  group_by(classification) %>%
  summarise(count = sum(count)) %>%
  ungroup() %>%
  mutate(classification = fct_reorder(classification, count))


ehsa3_199count <- ehsa_sig199 %>%
  mutate(count = 1) %>%
  group_by(classification) %>%
  summarise(count = sum(count)) %>%
  ungroup() %>%
  mutate(classification = fct_reorder(classification, count))

ehsa3_299count <- ehsa_sig299 %>%
  mutate(count = 1) %>%
  group_by(classification) %>%
  summarise(count = sum(count)) %>%
  ungroup() %>%
  mutate(classification = fct_reorder(classification, count))

ehsa3_399count <- ehsa_sig399 %>%
  mutate(count = 1) %>%
  group_by(classification) %>%
  summarise(count = sum(count)) %>%
  ungroup() %>%
  mutate(classification = fct_reorder(classification, count))

Show the code

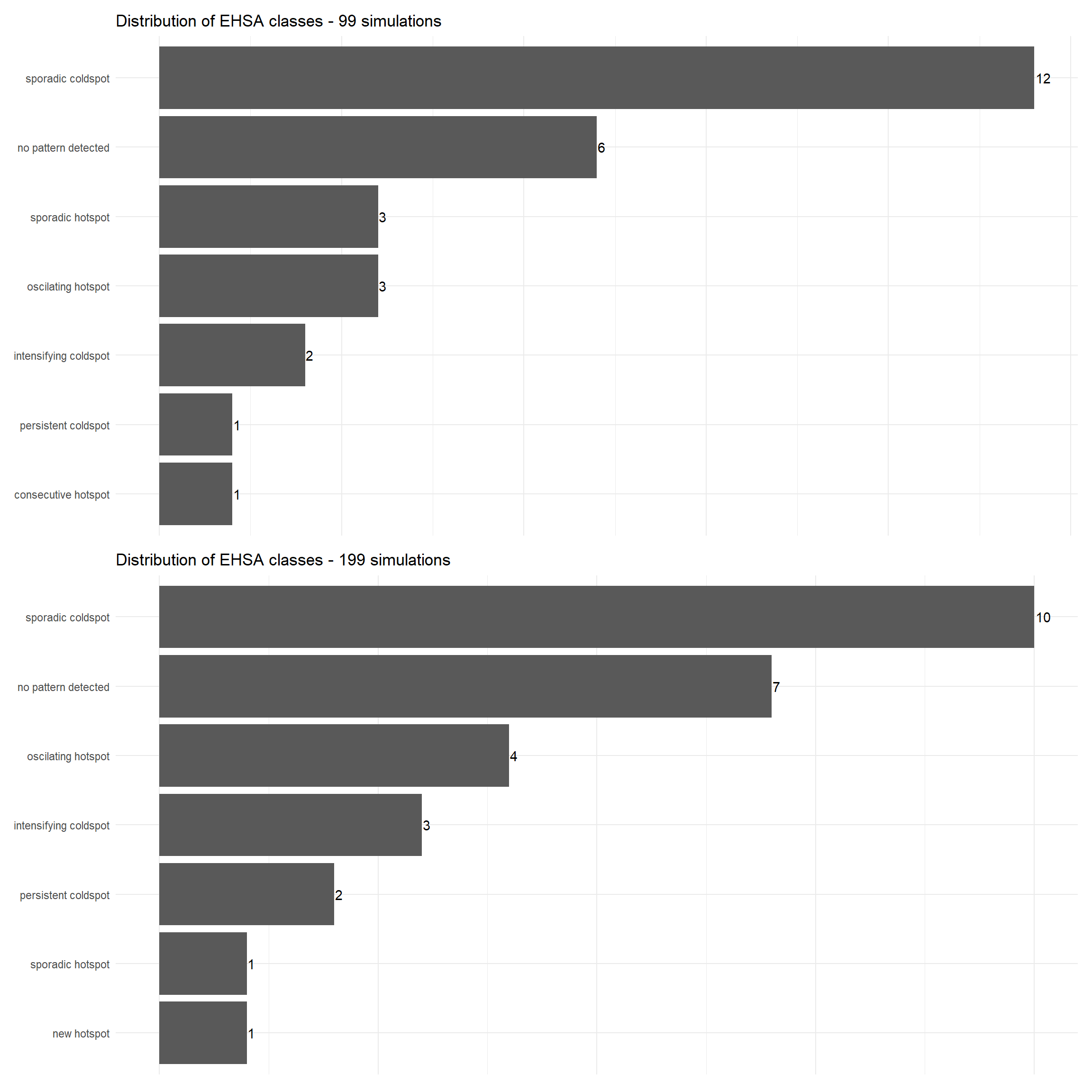

p6 <- ggplot(data = ehsa3_99count, aes(x = fct_reorder(classification,count), y = count)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  theme_minimal() +
  theme(axis.title.x = element_blank(), axis.title.y = element_blank(),
        axis.text.x = element_blank()) +
  ggtitle("Distribution of EHSA classes - 99 simulations") +
  geom_text(aes(label = count), hjust = -0.1)


p7 <- ggplot(data = ehsa3_199count, aes(x = fct_reorder(classification,count), y = count)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  theme_minimal() +
  theme(axis.title.x = element_blank(), axis.title.y = element_blank(),
        axis.text.x = element_blank()) +
  ggtitle("Distribution of EHSA classes - 199 simulations") +
  geom_text(aes(label = count), hjust = -0.1)

p8 <- ggplot(data = ehsa3_299count, aes(x = fct_reorder(classification,count), y = count)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  theme_minimal() +
  theme(axis.title.x = element_blank(), axis.title.y = element_blank(),
        axis.text.x = element_blank()) +
  ggtitle("Distribution of EHSA classes - 299 simulations") +
  geom_text(aes(label = count), hjust = -0.1)

p9 <- ggplot(data = ehsa3_399count, aes(x = fct_reorder(classification,count), y = count)) +
  geom_bar(stat = "identity") +
  coord_flip() +
  theme_minimal() +
  theme(axis.title.x = element_blank(), axis.title.y = element_blank(),
        axis.text.x = element_blank()) +
  ggtitle("Distribution of EHSA classes - 399 simulations") +
  geom_text(aes(label = count), hjust = -0.1)

patchwork2 <- p6/p7

patchwork2

patchwork3 <- p8/p9

patchwork3

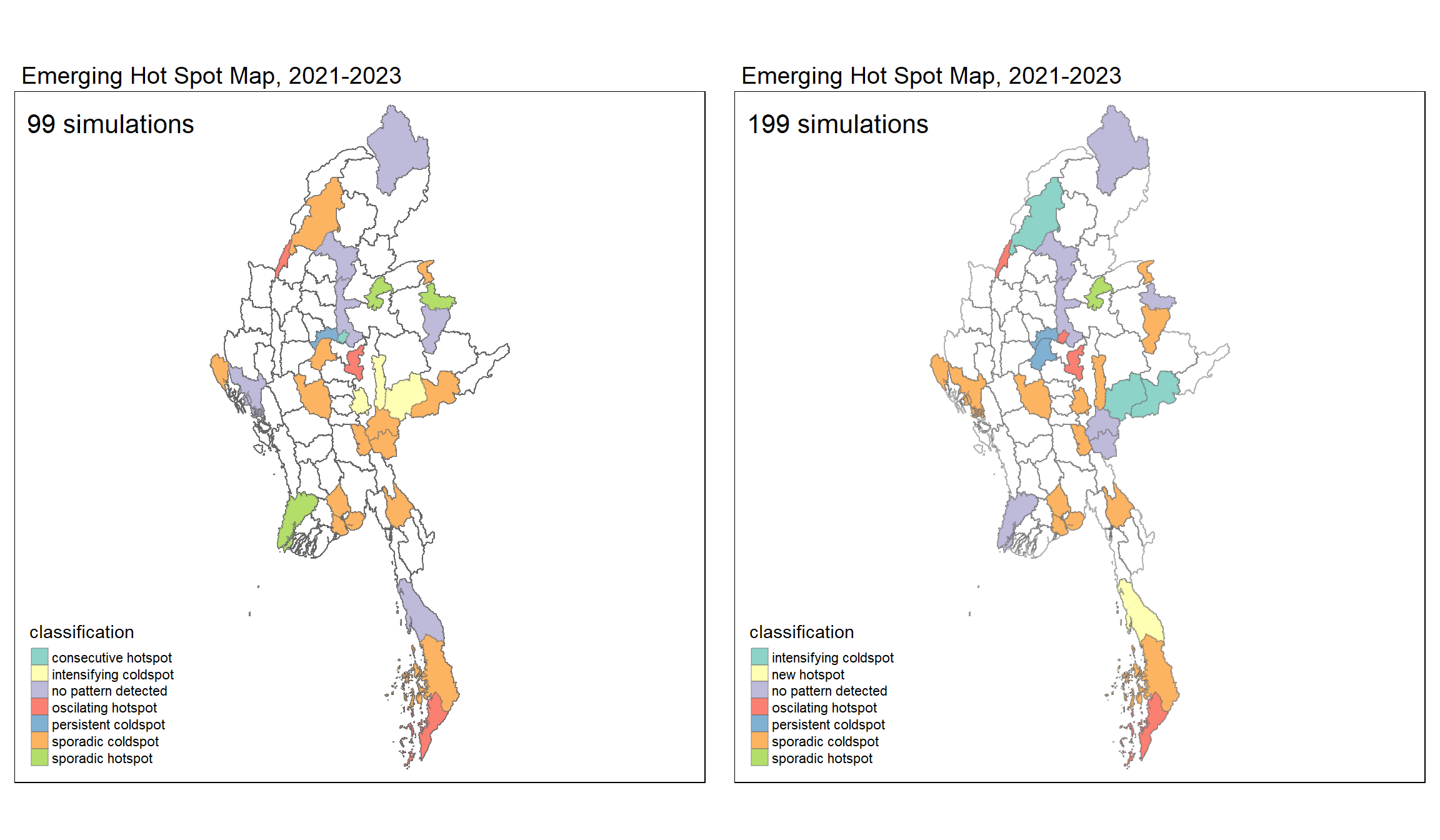

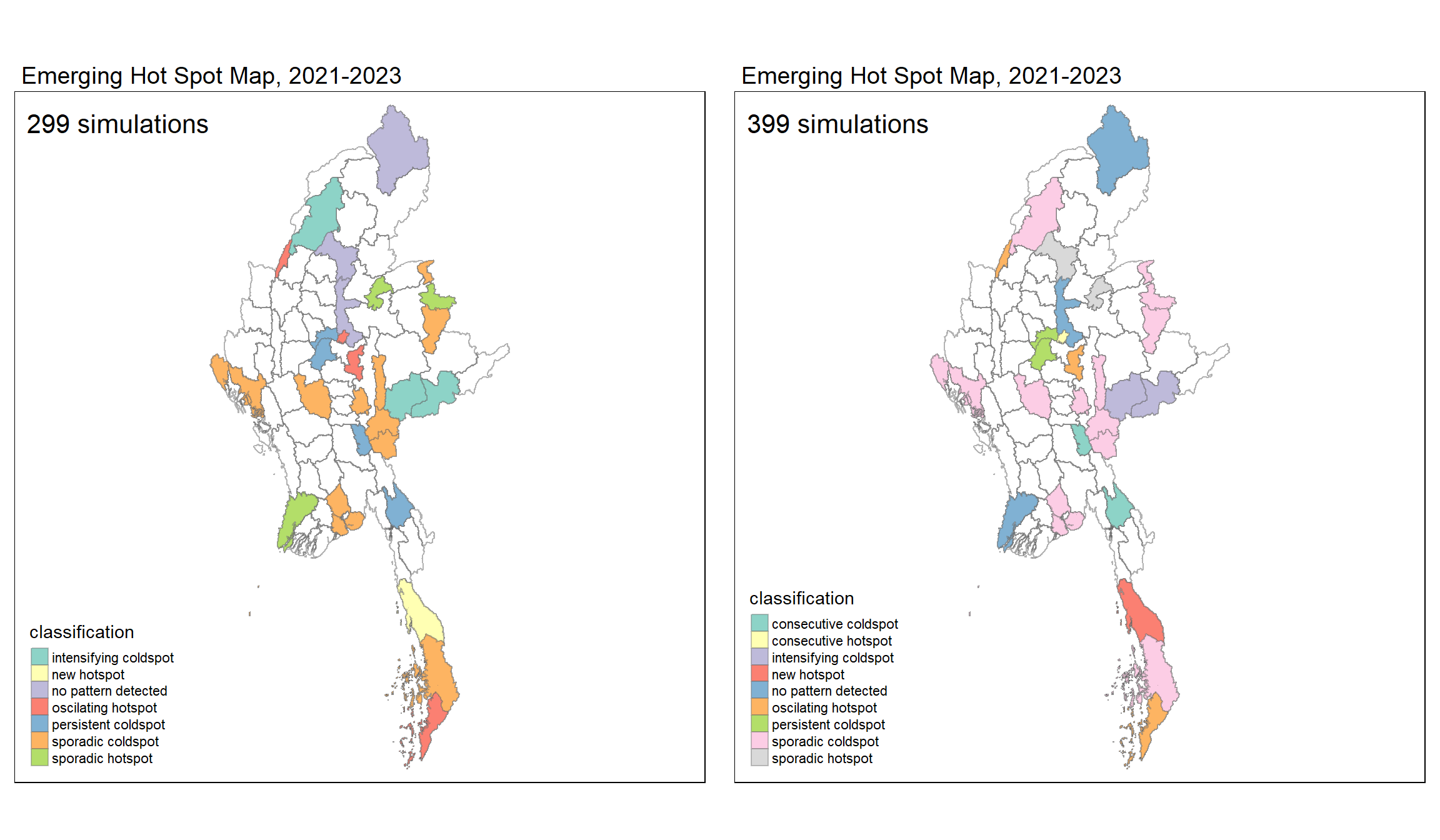

Show the code

ehsa1 <- tm_shape(mmr_ehsa99) +

  tm_borders() +
tm_shape(ehsa_sig99) +
  tm_fill("classification") +
  tm_borders(alpha = 0.4) +
  tm_layout(main.title = "Emerging Hot Spot Map, 2021-2023",
            title = "99 simulations",
            main.title.size = 1.2,
            legend.height = 0.60,
            legend.width = 5.0,
            legend.outside = FALSE,
            legend.position = c("left", "bottom"))

ehsa2 <- tm_shape(mmr_ehsa199) +

  tm_borders(alpha = 0.5) +
tm_shape(ehsa_sig199) +
  tm_fill("classification") +
  tm_borders(alpha = 0.4) +
  tm_layout(main.title = "Emerging Hot Spot Map, 2021-2023",
            title = "199 simulations",
            main.title.size = 1.2,
            legend.height = 0.60,
            legend.width = 5.0,
            legend.outside = FALSE,
            legend.position = c("left", "bottom"))

ehsa3 <- tm_shape(mmr_ehsa299) +

  tm_borders(alpha = 0.5) +
tm_shape(ehsa_sig299) +
  tm_fill("classification") +
  tm_borders(alpha = 0.4) +
  tm_layout(main.title = "Emerging Hot Spot Map, 2021-2023",
            title = "299 simulations",
            main.title.size = 1.2,
            legend.height = 0.60,
            legend.width = 5.0,
            legend.outside = FALSE,
            legend.position = c("left", "bottom"))

ehsa4 <- tm_shape(mmr_ehsa399) +

  tm_borders(alpha = 0.5) +
tm_shape(ehsa_sig399) +
  tm_fill("classification") +
  tm_borders(alpha = 0.4) +
  tm_layout(main.title = "Emerging Hot Spot Map, 2021-2023",
            title = "399 simulations",
            main.title.size = 1.2,
            legend.height = 0.60,
            legend.width = 5.0,
            legend.outside = FALSE,
            legend.position = c("left", "bottom"))

tmap_arrange(ehsa1, ehsa2,
             asp = 1,
             ncol=2, nrow=1)

tmap_arrange(ehsa3, ehsa4,
             asp = 1,
             ncol=2, nrow=1)

99 simulations

Districts_classtype99 <- ehsa_sig99 %>%
  select(DT, classification) %>%
  rename("District" = "DT") %>%
  filter(classification %in% c("oscilating hotspot", "sporadic hotspot", "new hotspot", "consecutive hotspot"))


Districts_classtype99 <- st_drop_geometry(Districts_classtype99)

# Display the table
kable(Districts_classtype99)

District	classification
Pathein	sporadic hotspot
Tamu	oscilating hotspot
Hopang	sporadic hotspot
Pa Laung Self-Administered Zone	sporadic hotspot
Danu Self-Administered Zone	oscilating hotspot
Kawthoung	oscilating hotspot
Mandalay	consecutive hotspot

199 simulations

Districts_classtype199 <- ehsa_sig199 %>%
  select(DT, classification) %>%
  rename("District" = "DT") %>%
  filter(classification %in% c("oscilating hotspot", "sporadic hotspot", "new hotspot", "consecutive hotspot"))


Districts_classtype199 <- st_drop_geometry(Districts_classtype199)

# Display the table
kable(Districts_classtype199)

District	classification
Tamu	oscilating hotspot
Pa Laung Self-Administered Zone	sporadic hotspot
Danu Self-Administered Zone	oscilating hotspot
Dawei	new hotspot
Kawthoung	oscilating hotspot
Mandalay	oscilating hotspot

299 simulations

Districts_classtype299 <- ehsa_sig299 %>%
  select(DT, classification) %>%
  rename("District" = "DT") %>%
  filter(classification %in% c("oscilating hotspot", "sporadic hotspot", "new hotspot", "consecutive hotspot"))


Districts_classtype299 <- st_drop_geometry(Districts_classtype299)

# Display the table
kable(Districts_classtype299)

District	classification
Pathein	sporadic hotspot
Tamu	oscilating hotspot
Hopang	sporadic hotspot
Pa Laung Self-Administered Zone	sporadic hotspot
Danu Self-Administered Zone	oscilating hotspot
Dawei	new hotspot
Kawthoung	oscilating hotspot
Mandalay	oscilating hotspot

399 simulations

Districts_classtype399 <- ehsa_sig399 %>%
  select(DT, classification) %>%
  rename("District" = "DT") %>%
  filter(classification %in% c("oscilating hotspot", "sporadic hotspot", "new hotspot", "consecutive hotspot"))


Districts_classtype399 <- st_drop_geometry(Districts_classtype399)

# Display the table
kable(Districts_classtype399)

District	classification
Katha	sporadic hotspot
Tamu	oscilating hotspot
Pa Laung Self-Administered Zone	sporadic hotspot
Danu Self-Administered Zone	oscilating hotspot
Dawei	new hotspot
Kawthoung	oscilating hotspot
Mandalay	consecutive hotspot
