pacman::p_load(spdep, sp, tmap, sf, ClustGeo,
ggpubr, cluster, factoextra, NbClust,
heatmaply, corrplot, psych, tidyverse, GGally)Geospatial Analysis3 - Spatially Constrained Clustering: ClustGeo method
Loading R packages
ACLED_MMR <- read_csv("data/MMR.csv")mmr_shp_mimu_2 <- st_read(dsn = "data/geospatial3",
layer = "mmr_polbnda_adm2_250k_mimu")Reading layer `mmr_polbnda_adm2_250k_mimu' from data source
`C:\imranmi\ISSS608-VAA\Take-home-ex\Take-home-Ex4f\data\geospatial3'
using driver `ESRI Shapefile'
Simple feature collection with 80 features and 7 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: 92.1721 ymin: 9.696844 xmax: 101.17 ymax: 28.54554
Geodetic CRS: WGS 84ACLED_MMR_1 <- ACLED_MMR %>%
mutate(admin1 = case_when(
admin1 == "Bago-East" ~ "Bago (East)",
admin1 == "Bago-West" ~ "Bago (West)",
admin1 == "Shan-North" ~ "Shan (North)",
admin1 == "Shan-South" ~ "Shan (South)",
admin1 == "Shan-East" ~ "Shan (East)",
TRUE ~ as.character(admin1)
))ACLED_MMR_1 <- ACLED_MMR_1 %>%
mutate(admin2 = case_when(
admin2 == "Yangon-East" ~ "Yangon (East)",
admin2 == "Yangon-West" ~ "Yangon (West)",
admin2 == "Yangon-North" ~ "Yangon (North)",
admin2 == "Yangon-South" ~ "Yangon (South)",
admin2 == "Mong Pawk (Wa SAD)" ~ "Tachileik",
admin2 == "Nay Pyi Taw" ~ "Det Khi Na",
admin2 == "Yangon" ~ "Yangon (West)",
TRUE ~ as.character(admin2)
))ACLED_MMR_1 <- ACLED_MMR_1 %>%
filter(year >= 2020 & year <= 2023)Data2 <- ACLED_MMR_1 %>%
group_by(year, admin2, event_type) %>%
summarise(Incidents = n(),
Fatalities = sum(fatalities, na.rm = TRUE)) %>%
ungroup()library(tidyr)
years <- unique(Data2$year)
event_types <- unique(Data2$event_type)
districts <- unique(Data2$admin2)
# Using complete() to create all combinations of year, admin2, and event_type
# and replacing NA values with 0 for Incidents and Fatalities
Data2_complete <- Data2 %>%
complete(year = years, admin2 = districts, event_type = event_types, fill = list(Incidents = 0, Fatalities = 0))library(dplyr)
library(tidyr)
data2_summary <- Data2_complete %>%
group_by(admin2, event_type, year) %>%
summarise(Incidents = sum(Incidents), Fatalities = sum(Fatalities), .groups = 'drop') # Summarize and drop grouping
# Now we'll spread this into a wider format
data2_long <- data2_summary %>%
pivot_wider(
names_from = c(event_type, year),
values_from = c(Incidents, Fatalities),
names_glue = "{event_type}_{year}_{.value}"
)Filtering the data set for just “Battles_2022_Incidents”
selected <- data2_long %>%
select(admin2, Battles_2022_Incidents)selected# A tibble: 80 × 2
admin2 Battles_2022_Incidents
<chr> <int>
1 Bago 12
2 Bawlake 16
3 Bhamo 54
4 Danu Self-Administered Zone 15
5 Dawei 141
6 Det Khi Na 0
7 Falam 59
8 Gangaw 143
9 Hakha 43
10 Hinthada 6
# ℹ 70 more rowsSpatially Constrained Clustering: ClustGeo Method
Computing proximity matrix
In R, many packages provide functions to calculate distance matrix. We will compute the proximity matrix by using dist() of R.
dist() supports six distance proximity calculations, they are: euclidean, maximum, manhattan, canberra, binary and minkowski. The default is euclidean proximity matrix.
The code chunk below is used to compute the proximity matrix using euclidean method.
proxmat <- dist(selected, method = 'euclidean')proxmat 1 2 3 4 5 6 7
2 5.656854
3 59.396970 53.740115
4 4.242641 1.414214 55.154329
5 182.433550 176.776695 123.036580 178.190909
6 16.970563 22.627417 76.367532 21.213203 199.404112
7 66.468037 60.811183 7.071068 62.225397 115.965512 83.438600
8 185.261977 179.605122 125.865007 181.019336 2.828427 202.232539 118.793939
9 43.840620 38.183766 15.556349 39.597980 138.592929 60.811183 22.627417
10 8.485281 14.142136 67.882251 12.727922 190.918831 8.485281 74.953319
11 2.828427 8.485281 62.225397 7.071068 185.261977 14.142136 69.296465
12 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
13 21.213203 15.556349 38.183766 16.970563 161.220346 38.183766 45.254834
14 38.183766 32.526912 21.213203 33.941125 144.249783 55.154329 28.284271
15 213.546248 207.889394 154.149278 209.303607 31.112698 230.516811 147.078210
16 31.112698 25.455844 28.284271 26.870058 151.320851 48.083261 35.355339
17 206.475180 200.818326 147.078210 202.232539 24.041631 223.445743 140.007143
18 108.894444 103.237590 49.497475 104.651804 73.539105 125.865007 42.426407
19 43.840620 38.183766 15.556349 39.597980 138.592929 60.811183 22.627417
20 1.414214 4.242641 57.982756 2.828427 181.019336 18.384776 65.053824
21 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
22 8.485281 14.142136 67.882251 12.727922 190.918831 8.485281 74.953319
23 38.183766 32.526912 21.213203 33.941125 144.249783 55.154329 28.284271
24 7.071068 12.727922 66.468037 11.313708 189.504617 9.899495 73.539105
25 1.414214 4.242641 57.982756 2.828427 181.019336 18.384776 65.053824
26 14.142136 19.798990 73.539105 18.384776 196.575685 2.828427 80.610173
27 12.727922 18.384776 72.124892 16.970563 195.161472 4.242641 79.195959
28 11.313708 5.656854 48.083261 7.071068 171.119841 28.284271 55.154329
29 359.210245 353.553391 299.813275 354.967604 176.776695 376.180808 292.742207
30 5.656854 11.313708 65.053824 9.899495 188.090404 11.313708 72.124892
31 5.656854 11.313708 65.053824 9.899495 188.090404 11.313708 72.124892
32 46.669048 41.012193 12.727922 42.426407 135.764502 63.639610 19.798990
33 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
34 97.580736 91.923882 38.183766 93.338095 84.852814 114.551299 31.112698
35 14.142136 19.798990 73.539105 18.384776 196.575685 2.828427 80.610173
36 67.882251 62.225397 8.485281 63.639610 114.551299 84.852814 1.414214
37 14.142136 8.485281 45.254834 9.899495 168.291414 31.112698 52.325902
38 108.894444 103.237590 49.497475 104.651804 73.539105 125.865007 42.426407
39 14.142136 19.798990 73.539105 18.384776 196.575685 2.828427 80.610173
40 0.000000 5.656854 59.396970 4.242641 182.433550 16.970563 66.468037
41 77.781746 72.124892 18.384776 73.539105 104.651804 94.752309 11.313708
42 70.710678 65.053824 11.313708 66.468037 111.722871 87.681241 4.242641
43 15.556349 21.213203 74.953319 19.798990 197.989899 1.414214 82.024387
44 1.414214 4.242641 57.982756 2.828427 181.019336 18.384776 65.053824
45 195.161472 189.504617 135.764502 190.918831 12.727922 212.132034 128.693434
46 8.485281 2.828427 50.911688 4.242641 173.948268 25.455844 57.982756
47 142.835570 137.178716 83.438600 138.592929 39.597980 159.806133 76.367532
48 15.556349 21.213203 74.953319 19.798990 197.989899 1.414214 82.024387
49 135.764502 130.107648 76.367532 131.521861 46.669048 152.735065 69.296465
50 179.605122 173.948268 120.208153 175.362482 2.828427 196.575685 113.137085
51 52.325902 46.669048 7.071068 48.083261 130.107648 69.296465 14.142136
52 41.012193 35.355339 18.384776 36.769553 141.421356 57.982756 25.455844
53 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
54 11.313708 16.970563 70.710678 15.556349 193.747258 5.656854 77.781746
55 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
56 7.071068 1.414214 52.325902 2.828427 175.362482 24.041631 59.396970
57 9.899495 15.556349 69.296465 14.142136 192.333044 7.071068 76.367532
58 299.813275 294.156421 240.416306 295.570635 117.379726 316.783838 233.345238
59 11.313708 16.970563 70.710678 15.556349 193.747258 5.656854 77.781746
60 25.455844 19.798990 33.941125 21.213203 156.977705 42.426407 41.012193
61 14.142136 19.798990 73.539105 18.384776 196.575685 2.828427 80.610173
62 1.414214 4.242641 57.982756 2.828427 181.019336 18.384776 65.053824
63 48.083261 42.426407 11.313708 43.840620 134.350288 65.053824 18.384776
64 107.480231 101.823376 48.083261 103.237590 74.953319 124.450793 41.012193
65 275.771645 270.114790 216.374675 271.529004 93.338095 292.742207 209.303607
66 4.242641 1.414214 55.154329 0.000000 178.190909 21.213203 62.225397
67 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
68 42.426407 36.769553 16.970563 38.183766 140.007143 59.396970 24.041631
69 90.509668 84.852814 31.112698 86.267027 91.923882 107.480231 24.041631
70 52.325902 46.669048 7.071068 48.083261 130.107648 69.296465 14.142136
71 12.727922 18.384776 72.124892 16.970563 195.161472 4.242641 79.195959
72 131.521861 125.865007 72.124892 127.279221 50.911688 148.492424 65.053824
73 12.727922 7.071068 46.669048 8.485281 169.705627 29.698485 53.740115
74 5.656854 11.313708 65.053824 9.899495 188.090404 11.313708 72.124892
75 16.970563 22.627417 76.367532 21.213203 199.404112 0.000000 83.438600
76 5.656854 0.000000 53.740115 1.414214 176.776695 22.627417 60.811183
77 7.071068 12.727922 66.468037 11.313708 189.504617 9.899495 73.539105
78 2.828427 2.828427 56.568542 1.414214 179.605122 19.798990 63.639610
79 2.828427 8.485281 62.225397 7.071068 185.261977 14.142136 69.296465
80 282.842712 277.185858 223.445743 278.600072 100.409163 299.813275 216.374675
8 9 10 11 12 13 14
2
3
4
5
6
7
8
9 141.421356
10 193.747258 52.325902
11 188.090404 46.669048 5.656854
12 202.232539 60.811183 8.485281 14.142136
13 164.048773 22.627417 29.698485 24.041631 38.183766
14 147.078210 5.656854 46.669048 41.012193 55.154329 16.970563
15 28.284271 169.705627 222.031529 216.374675 230.516811 192.333044 175.362482
16 154.149278 12.727922 39.597980 33.941125 48.083261 9.899495 7.071068
17 21.213203 162.634560 214.960461 209.303607 223.445743 185.261977 168.291414
18 76.367532 65.053824 117.379726 111.722871 125.865007 87.681241 70.710678
19 141.421356 0.000000 52.325902 46.669048 60.811183 22.627417 5.656854
20 183.847763 42.426407 9.899495 4.242641 18.384776 19.798990 36.769553
21 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
22 193.747258 52.325902 0.000000 5.656854 8.485281 29.698485 46.669048
23 147.078210 5.656854 46.669048 41.012193 55.154329 16.970563 0.000000
24 192.333044 50.911688 1.414214 4.242641 9.899495 28.284271 45.254834
25 183.847763 42.426407 9.899495 4.242641 18.384776 19.798990 36.769553
26 199.404112 57.982756 5.656854 11.313708 2.828427 35.355339 52.325902
27 197.989899 56.568542 4.242641 9.899495 4.242641 33.941125 50.911688
28 173.948268 32.526912 19.798990 14.142136 28.284271 9.899495 26.870058
29 173.948268 315.369624 367.695526 362.038672 376.180808 337.997041 321.026479
30 190.918831 49.497475 2.828427 2.828427 11.313708 26.870058 43.840620
31 190.918831 49.497475 2.828427 2.828427 11.313708 26.870058 43.840620
32 138.592929 2.828427 55.154329 49.497475 63.639610 25.455844 8.485281
33 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
34 87.681241 53.740115 106.066017 100.409163 114.551299 76.367532 59.396970
35 199.404112 57.982756 5.656854 11.313708 2.828427 35.355339 52.325902
36 117.379726 24.041631 76.367532 70.710678 84.852814 46.669048 29.698485
37 171.119841 29.698485 22.627417 16.970563 31.112698 7.071068 24.041631
38 76.367532 65.053824 117.379726 111.722871 125.865007 87.681241 70.710678
39 199.404112 57.982756 5.656854 11.313708 2.828427 35.355339 52.325902
40 185.261977 43.840620 8.485281 2.828427 16.970563 21.213203 38.183766
41 107.480231 33.941125 86.267027 80.610173 94.752309 56.568542 39.597980
42 114.551299 26.870058 79.195959 73.539105 87.681241 49.497475 32.526912
43 200.818326 59.396970 7.071068 12.727922 1.414214 36.769553 53.740115
44 183.847763 42.426407 9.899495 4.242641 18.384776 19.798990 36.769553
45 9.899495 151.320851 203.646753 197.989899 212.132034 173.948268 156.977705
46 176.776695 35.355339 16.970563 11.313708 25.455844 12.727922 29.698485
47 42.426407 98.994949 151.320851 145.663997 159.806133 121.622366 104.651804
48 200.818326 59.396970 7.071068 12.727922 1.414214 36.769553 53.740115
49 49.497475 91.923882 144.249783 138.592929 152.735065 114.551299 97.580736
50 5.656854 135.764502 188.090404 182.433550 196.575685 158.391919 141.421356
51 132.936075 8.485281 60.811183 55.154329 69.296465 31.112698 14.142136
52 144.249783 2.828427 49.497475 43.840620 57.982756 19.798990 2.828427
53 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
54 196.575685 55.154329 2.828427 8.485281 5.656854 32.526912 49.497475
55 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
56 178.190909 36.769553 15.556349 9.899495 24.041631 14.142136 31.112698
57 195.161472 53.740115 1.414214 7.071068 7.071068 31.112698 48.083261
58 114.551299 255.972655 308.298557 302.641702 316.783838 278.600072 261.629509
59 196.575685 55.154329 2.828427 8.485281 5.656854 32.526912 49.497475
60 159.806133 18.384776 33.941125 28.284271 42.426407 4.242641 12.727922
61 199.404112 57.982756 5.656854 11.313708 2.828427 35.355339 52.325902
62 183.847763 42.426407 9.899495 4.242641 18.384776 19.798990 36.769553
63 137.178716 4.242641 56.568542 50.911688 65.053824 26.870058 9.899495
64 77.781746 63.639610 115.965512 110.308658 124.450793 86.267027 69.296465
65 90.509668 231.931024 284.256926 278.600072 292.742207 254.558441 237.587878
66 181.019336 39.597980 12.727922 7.071068 21.213203 16.970563 33.941125
67 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
68 142.835570 1.414214 50.911688 45.254834 59.396970 21.213203 4.242641
69 94.752309 46.669048 98.994949 93.338095 107.480231 69.296465 52.325902
70 132.936075 8.485281 60.811183 55.154329 69.296465 31.112698 14.142136
71 197.989899 56.568542 4.242641 9.899495 4.242641 33.941125 50.911688
72 53.740115 87.681241 140.007143 134.350288 148.492424 110.308658 93.338095
73 172.534055 31.112698 21.213203 15.556349 29.698485 8.485281 25.455844
74 190.918831 49.497475 2.828427 2.828427 11.313708 26.870058 43.840620
75 202.232539 60.811183 8.485281 14.142136 0.000000 38.183766 55.154329
76 179.605122 38.183766 14.142136 8.485281 22.627417 15.556349 32.526912
77 192.333044 50.911688 1.414214 4.242641 9.899495 28.284271 45.254834
78 182.433550 41.012193 11.313708 5.656854 19.798990 18.384776 35.355339
79 188.090404 46.669048 5.656854 0.000000 14.142136 24.041631 41.012193
80 97.580736 239.002092 291.327994 285.671140 299.813275 261.629509 244.658946
15 16 17 18 19 20 21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 182.433550
17 7.071068 175.362482
18 104.651804 77.781746 97.580736
19 169.705627 12.727922 162.634560 65.053824
20 212.132034 29.698485 205.060967 107.480231 42.426407
21 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776
22 222.031529 39.597980 214.960461 117.379726 52.325902 9.899495 8.485281
23 175.362482 7.071068 168.291414 70.710678 5.656854 36.769553 55.154329
24 220.617316 38.183766 213.546248 115.965512 50.911688 8.485281 9.899495
25 212.132034 29.698485 205.060967 107.480231 42.426407 0.000000 18.384776
26 227.688384 45.254834 220.617316 123.036580 57.982756 15.556349 2.828427
27 226.274170 43.840620 219.203102 121.622366 56.568542 14.142136 4.242641
28 202.232539 19.798990 195.161472 97.580736 32.526912 9.899495 28.284271
29 145.663997 328.097546 152.735065 250.315801 315.369624 357.796031 376.180808
30 219.203102 36.769553 212.132034 114.551299 49.497475 7.071068 11.313708
31 219.203102 36.769553 212.132034 114.551299 49.497475 7.071068 11.313708
32 166.877200 15.556349 159.806133 62.225397 2.828427 45.254834 63.639610
33 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776 0.000000
34 115.965512 66.468037 108.894444 11.313708 53.740115 96.166522 114.551299
35 227.688384 45.254834 220.617316 123.036580 57.982756 15.556349 2.828427
36 145.663997 36.769553 138.592929 41.012193 24.041631 66.468037 84.852814
37 199.404112 16.970563 192.333044 94.752309 29.698485 12.727922 31.112698
38 104.651804 77.781746 97.580736 0.000000 65.053824 107.480231 125.865007
39 227.688384 45.254834 220.617316 123.036580 57.982756 15.556349 2.828427
40 213.546248 31.112698 206.475180 108.894444 43.840620 1.414214 16.970563
41 135.764502 46.669048 128.693434 31.112698 33.941125 76.367532 94.752309
42 142.835570 39.597980 135.764502 38.183766 26.870058 69.296465 87.681241
43 229.102597 46.669048 222.031529 124.450793 59.396970 16.970563 1.414214
44 212.132034 29.698485 205.060967 107.480231 42.426407 0.000000 18.384776
45 18.384776 164.048773 11.313708 86.267027 151.320851 193.747258 212.132034
46 205.060967 22.627417 197.989899 100.409163 35.355339 7.071068 25.455844
47 70.710678 111.722871 63.639610 33.941125 98.994949 141.421356 159.806133
48 229.102597 46.669048 222.031529 124.450793 59.396970 16.970563 1.414214
49 77.781746 104.651804 70.710678 26.870058 91.923882 134.350288 152.735065
50 33.941125 148.492424 26.870058 70.710678 135.764502 178.190909 196.575685
51 161.220346 21.213203 154.149278 56.568542 8.485281 50.911688 69.296465
52 172.534055 9.899495 165.462987 67.882251 2.828427 39.597980 57.982756
53 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776 0.000000
54 224.859956 42.426407 217.788889 120.208153 55.154329 12.727922 5.656854
55 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776 0.000000
56 206.475180 24.041631 199.404112 101.823376 36.769553 5.656854 24.041631
57 223.445743 41.012193 216.374675 118.793939 53.740115 11.313708 7.071068
58 86.267027 268.700577 93.338095 190.918831 255.972655 298.399062 316.783838
59 224.859956 42.426407 217.788889 120.208153 55.154329 12.727922 5.656854
60 188.090404 5.656854 181.019336 83.438600 18.384776 24.041631 42.426407
61 227.688384 45.254834 220.617316 123.036580 57.982756 15.556349 2.828427
62 212.132034 29.698485 205.060967 107.480231 42.426407 0.000000 18.384776
63 165.462987 16.970563 158.391919 60.811183 4.242641 46.669048 65.053824
64 106.066017 76.367532 98.994949 1.414214 63.639610 106.066017 124.450793
65 62.225397 244.658946 69.296465 166.877200 231.931024 274.357431 292.742207
66 209.303607 26.870058 202.232539 104.651804 39.597980 2.828427 21.213203
67 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776 0.000000
68 171.119841 11.313708 164.048773 66.468037 1.414214 41.012193 59.396970
69 123.036580 59.396970 115.965512 18.384776 46.669048 89.095454 107.480231
70 161.220346 21.213203 154.149278 56.568542 8.485281 50.911688 69.296465
71 226.274170 43.840620 219.203102 121.622366 56.568542 14.142136 4.242641
72 82.024387 100.409163 74.953319 22.627417 87.681241 130.107648 148.492424
73 200.818326 18.384776 193.747258 96.166522 31.112698 11.313708 29.698485
74 219.203102 36.769553 212.132034 114.551299 49.497475 7.071068 11.313708
75 230.516811 48.083261 223.445743 125.865007 60.811183 18.384776 0.000000
76 207.889394 25.455844 200.818326 103.237590 38.183766 4.242641 22.627417
77 220.617316 38.183766 213.546248 115.965512 50.911688 8.485281 9.899495
78 210.717821 28.284271 203.646753 106.066017 41.012193 1.414214 19.798990
79 216.374675 33.941125 209.303607 111.722871 46.669048 4.242641 14.142136
80 69.296465 251.730014 76.367532 173.948268 239.002092 281.428499 299.813275
22 23 24 25 26 27 28
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 46.669048
24 1.414214 45.254834
25 9.899495 36.769553 8.485281
26 5.656854 52.325902 7.071068 15.556349
27 4.242641 50.911688 5.656854 14.142136 1.414214
28 19.798990 26.870058 18.384776 9.899495 25.455844 24.041631
29 367.695526 321.026479 366.281313 357.796031 373.352380 371.938167 347.896536
30 2.828427 43.840620 1.414214 7.071068 8.485281 7.071068 16.970563
31 2.828427 43.840620 1.414214 7.071068 8.485281 7.071068 16.970563
32 55.154329 8.485281 53.740115 45.254834 60.811183 59.396970 35.355339
33 8.485281 55.154329 9.899495 18.384776 2.828427 4.242641 28.284271
34 106.066017 59.396970 104.651804 96.166522 111.722871 110.308658 86.267027
35 5.656854 52.325902 7.071068 15.556349 0.000000 1.414214 25.455844
36 76.367532 29.698485 74.953319 66.468037 82.024387 80.610173 56.568542
37 22.627417 24.041631 21.213203 12.727922 28.284271 26.870058 2.828427
38 117.379726 70.710678 115.965512 107.480231 123.036580 121.622366 97.580736
39 5.656854 52.325902 7.071068 15.556349 0.000000 1.414214 25.455844
40 8.485281 38.183766 7.071068 1.414214 14.142136 12.727922 11.313708
41 86.267027 39.597980 84.852814 76.367532 91.923882 90.509668 66.468037
42 79.195959 32.526912 77.781746 69.296465 84.852814 83.438600 59.396970
43 7.071068 53.740115 8.485281 16.970563 1.414214 2.828427 26.870058
44 9.899495 36.769553 8.485281 0.000000 15.556349 14.142136 9.899495
45 203.646753 156.977705 202.232539 193.747258 209.303607 207.889394 183.847763
46 16.970563 29.698485 15.556349 7.071068 22.627417 21.213203 2.828427
47 151.320851 104.651804 149.906638 141.421356 156.977705 155.563492 131.521861
48 7.071068 53.740115 8.485281 16.970563 1.414214 2.828427 26.870058
49 144.249783 97.580736 142.835570 134.350288 149.906638 148.492424 124.450793
50 188.090404 141.421356 186.676190 178.190909 193.747258 192.333044 168.291414
51 60.811183 14.142136 59.396970 50.911688 66.468037 65.053824 41.012193
52 49.497475 2.828427 48.083261 39.597980 55.154329 53.740115 29.698485
53 8.485281 55.154329 9.899495 18.384776 2.828427 4.242641 28.284271
54 2.828427 49.497475 4.242641 12.727922 2.828427 1.414214 22.627417
55 8.485281 55.154329 9.899495 18.384776 2.828427 4.242641 28.284271
56 15.556349 31.112698 14.142136 5.656854 21.213203 19.798990 4.242641
57 1.414214 48.083261 2.828427 11.313708 4.242641 2.828427 21.213203
58 308.298557 261.629509 306.884343 298.399062 313.955411 312.541197 288.499567
59 2.828427 49.497475 4.242641 12.727922 2.828427 1.414214 22.627417
60 33.941125 12.727922 32.526912 24.041631 39.597980 38.183766 14.142136
61 5.656854 52.325902 7.071068 15.556349 0.000000 1.414214 25.455844
62 9.899495 36.769553 8.485281 0.000000 15.556349 14.142136 9.899495
63 56.568542 9.899495 55.154329 46.669048 62.225397 60.811183 36.769553
64 115.965512 69.296465 114.551299 106.066017 121.622366 120.208153 96.166522
65 284.256926 237.587878 282.842712 274.357431 289.913780 288.499567 264.457936
66 12.727922 33.941125 11.313708 2.828427 18.384776 16.970563 7.071068
67 8.485281 55.154329 9.899495 18.384776 2.828427 4.242641 28.284271
68 50.911688 4.242641 49.497475 41.012193 56.568542 55.154329 31.112698
69 98.994949 52.325902 97.580736 89.095454 104.651804 103.237590 79.195959
70 60.811183 14.142136 59.396970 50.911688 66.468037 65.053824 41.012193
71 4.242641 50.911688 5.656854 14.142136 1.414214 0.000000 24.041631
72 140.007143 93.338095 138.592929 130.107648 145.663997 144.249783 120.208153
73 21.213203 25.455844 19.798990 11.313708 26.870058 25.455844 1.414214
74 2.828427 43.840620 1.414214 7.071068 8.485281 7.071068 16.970563
75 8.485281 55.154329 9.899495 18.384776 2.828427 4.242641 28.284271
76 14.142136 32.526912 12.727922 4.242641 19.798990 18.384776 5.656854
77 1.414214 45.254834 0.000000 8.485281 7.071068 5.656854 18.384776
78 11.313708 35.355339 9.899495 1.414214 16.970563 15.556349 8.485281
79 5.656854 41.012193 4.242641 4.242641 11.313708 9.899495 14.142136
80 291.327994 244.658946 289.913780 281.428499 296.984848 295.570635 271.529004
29 30 31 32 33 34 35
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30 364.867099
31 364.867099 0.000000
32 312.541197 52.325902 52.325902
33 376.180808 11.313708 11.313708 63.639610
34 261.629509 103.237590 103.237590 50.911688 114.551299
35 373.352380 8.485281 8.485281 60.811183 2.828427 111.722871
36 291.327994 73.539105 73.539105 21.213203 84.852814 29.698485 82.024387
37 345.068109 19.798990 19.798990 32.526912 31.112698 83.438600 28.284271
38 250.315801 114.551299 114.551299 62.225397 125.865007 11.313708 123.036580
39 373.352380 8.485281 8.485281 60.811183 2.828427 111.722871 0.000000
40 359.210245 5.656854 5.656854 46.669048 16.970563 97.580736 14.142136
41 281.428499 83.438600 83.438600 31.112698 94.752309 19.798990 91.923882
42 288.499567 76.367532 76.367532 24.041631 87.681241 26.870058 84.852814
43 374.766594 9.899495 9.899495 62.225397 1.414214 113.137085 1.414214
44 357.796031 7.071068 7.071068 45.254834 18.384776 96.166522 15.556349
45 164.048773 200.818326 200.818326 148.492424 212.132034 97.580736 209.303607
46 350.724963 14.142136 14.142136 38.183766 25.455844 89.095454 22.627417
47 216.374675 148.492424 148.492424 96.166522 159.806133 45.254834 156.977705
48 374.766594 9.899495 9.899495 62.225397 1.414214 113.137085 1.414214
49 223.445743 141.421356 141.421356 89.095454 152.735065 38.183766 149.906638
50 179.605122 185.261977 185.261977 132.936075 196.575685 82.024387 193.747258
51 306.884343 57.982756 57.982756 5.656854 69.296465 45.254834 66.468037
52 318.198052 46.669048 46.669048 5.656854 57.982756 56.568542 55.154329
53 376.180808 11.313708 11.313708 63.639610 0.000000 114.551299 2.828427
54 370.523953 5.656854 5.656854 57.982756 5.656854 108.894444 2.828427
55 376.180808 11.313708 11.313708 63.639610 0.000000 114.551299 2.828427
56 352.139177 12.727922 12.727922 39.597980 24.041631 90.509668 21.213203
57 369.109740 4.242641 4.242641 56.568542 7.071068 107.480231 4.242641
58 59.396970 305.470129 305.470129 253.144228 316.783838 202.232539 313.955411
59 370.523953 5.656854 5.656854 57.982756 5.656854 108.894444 2.828427
60 333.754401 31.112698 31.112698 21.213203 42.426407 72.124892 39.597980
61 373.352380 8.485281 8.485281 60.811183 2.828427 111.722871 0.000000
62 357.796031 7.071068 7.071068 45.254834 18.384776 96.166522 15.556349
63 311.126984 53.740115 53.740115 1.414214 65.053824 49.497475 62.225397
64 251.730014 113.137085 113.137085 60.811183 124.450793 9.899495 121.622366
65 83.438600 281.428499 281.428499 229.102597 292.742207 178.190909 289.913780
66 354.967604 9.899495 9.899495 42.426407 21.213203 93.338095 18.384776
67 376.180808 11.313708 11.313708 63.639610 0.000000 114.551299 2.828427
68 316.783838 48.083261 48.083261 4.242641 59.396970 55.154329 56.568542
69 268.700577 96.166522 96.166522 43.840620 107.480231 7.071068 104.651804
70 306.884343 57.982756 57.982756 5.656854 69.296465 45.254834 66.468037
71 371.938167 7.071068 7.071068 59.396970 4.242641 110.308658 1.414214
72 227.688384 137.178716 137.178716 84.852814 148.492424 33.941125 145.663997
73 346.482323 18.384776 18.384776 33.941125 29.698485 84.852814 26.870058
74 364.867099 0.000000 0.000000 52.325902 11.313708 103.237590 8.485281
75 376.180808 11.313708 11.313708 63.639610 0.000000 114.551299 2.828427
76 353.553391 11.313708 11.313708 41.012193 22.627417 91.923882 19.798990
77 366.281313 1.414214 1.414214 53.740115 9.899495 104.651804 7.071068
78 356.381818 8.485281 8.485281 43.840620 19.798990 94.752309 16.970563
79 362.038672 2.828427 2.828427 49.497475 14.142136 100.409163 11.313708
80 76.367532 288.499567 288.499567 236.173665 299.813275 185.261977 296.984848
36 37 38 39 40 41 42
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 53.740115
38 41.012193 94.752309
39 82.024387 28.284271 123.036580
40 67.882251 14.142136 108.894444 14.142136
41 9.899495 63.639610 31.112698 91.923882 77.781746
42 2.828427 56.568542 38.183766 84.852814 70.710678 7.071068
43 83.438600 29.698485 124.450793 1.414214 15.556349 93.338095 86.267027
44 66.468037 12.727922 107.480231 15.556349 1.414214 76.367532 69.296465
45 127.279221 181.019336 86.267027 209.303607 195.161472 117.379726 124.450793
46 59.396970 5.656854 100.409163 22.627417 8.485281 69.296465 62.225397
47 74.953319 128.693434 33.941125 156.977705 142.835570 65.053824 72.124892
48 83.438600 29.698485 124.450793 1.414214 15.556349 93.338095 86.267027
49 67.882251 121.622366 26.870058 149.906638 135.764502 57.982756 65.053824
50 111.722871 165.462987 70.710678 193.747258 179.605122 101.823376 108.894444
51 15.556349 38.183766 56.568542 66.468037 52.325902 25.455844 18.384776
52 26.870058 26.870058 67.882251 55.154329 41.012193 36.769553 29.698485
53 84.852814 31.112698 125.865007 2.828427 16.970563 94.752309 87.681241
54 79.195959 25.455844 120.208153 2.828427 11.313708 89.095454 82.024387
55 84.852814 31.112698 125.865007 2.828427 16.970563 94.752309 87.681241
56 60.811183 7.071068 101.823376 21.213203 7.071068 70.710678 63.639610
57 77.781746 24.041631 118.793939 4.242641 9.899495 87.681241 80.610173
58 231.931024 285.671140 190.918831 313.955411 299.813275 222.031529 229.102597
59 79.195959 25.455844 120.208153 2.828427 11.313708 89.095454 82.024387
60 42.426407 11.313708 83.438600 39.597980 25.455844 52.325902 45.254834
61 82.024387 28.284271 123.036580 0.000000 14.142136 91.923882 84.852814
62 66.468037 12.727922 107.480231 15.556349 1.414214 76.367532 69.296465
63 19.798990 33.941125 60.811183 62.225397 48.083261 29.698485 22.627417
64 39.597980 93.338095 1.414214 121.622366 107.480231 29.698485 36.769553
65 207.889394 261.629509 166.877200 289.913780 275.771645 197.989899 205.060967
66 63.639610 9.899495 104.651804 18.384776 4.242641 73.539105 66.468037
67 84.852814 31.112698 125.865007 2.828427 16.970563 94.752309 87.681241
68 25.455844 28.284271 66.468037 56.568542 42.426407 35.355339 28.284271
69 22.627417 76.367532 18.384776 104.651804 90.509668 12.727922 19.798990
70 15.556349 38.183766 56.568542 66.468037 52.325902 25.455844 18.384776
71 80.610173 26.870058 121.622366 1.414214 12.727922 90.509668 83.438600
72 63.639610 117.379726 22.627417 145.663997 131.521861 53.740115 60.811183
73 55.154329 1.414214 96.166522 26.870058 12.727922 65.053824 57.982756
74 73.539105 19.798990 114.551299 8.485281 5.656854 83.438600 76.367532
75 84.852814 31.112698 125.865007 2.828427 16.970563 94.752309 87.681241
76 62.225397 8.485281 103.237590 19.798990 5.656854 72.124892 65.053824
77 74.953319 21.213203 115.965512 7.071068 7.071068 84.852814 77.781746
78 65.053824 11.313708 106.066017 16.970563 2.828427 74.953319 67.882251
79 70.710678 16.970563 111.722871 11.313708 2.828427 80.610173 73.539105
80 214.960461 268.700577 173.948268 296.984848 282.842712 205.060967 212.132034
43 44 45 46 47 48 49
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44 16.970563
45 210.717821 193.747258
46 24.041631 7.071068 186.676190
47 158.391919 141.421356 52.325902 134.350288
48 0.000000 16.970563 210.717821 24.041631 158.391919
49 151.320851 134.350288 59.396970 127.279221 7.071068 151.320851
50 195.161472 178.190909 15.556349 171.119841 36.769553 195.161472 43.840620
51 67.882251 50.911688 142.835570 43.840620 90.509668 67.882251 83.438600
52 56.568542 39.597980 154.149278 32.526912 101.823376 56.568542 94.752309
53 1.414214 18.384776 212.132034 25.455844 159.806133 1.414214 152.735065
54 4.242641 12.727922 206.475180 19.798990 154.149278 4.242641 147.078210
55 1.414214 18.384776 212.132034 25.455844 159.806133 1.414214 152.735065
56 22.627417 5.656854 188.090404 1.414214 135.764502 22.627417 128.693434
57 5.656854 11.313708 205.060967 18.384776 152.735065 5.656854 145.663997
58 315.369624 298.399062 104.651804 291.327994 156.977705 315.369624 164.048773
59 4.242641 12.727922 206.475180 19.798990 154.149278 4.242641 147.078210
60 41.012193 24.041631 169.705627 16.970563 117.379726 41.012193 110.308658
61 1.414214 15.556349 209.303607 22.627417 156.977705 1.414214 149.906638
62 16.970563 0.000000 193.747258 7.071068 141.421356 16.970563 134.350288
63 63.639610 46.669048 147.078210 39.597980 94.752309 63.639610 87.681241
64 123.036580 106.066017 87.681241 98.994949 35.355339 123.036580 28.284271
65 291.327994 274.357431 80.610173 267.286363 132.936075 291.327994 140.007143
66 19.798990 2.828427 190.918831 4.242641 138.592929 19.798990 131.521861
67 1.414214 18.384776 212.132034 25.455844 159.806133 1.414214 152.735065
68 57.982756 41.012193 152.735065 33.941125 100.409163 57.982756 93.338095
69 106.066017 89.095454 104.651804 82.024387 52.325902 106.066017 45.254834
70 67.882251 50.911688 142.835570 43.840620 90.509668 67.882251 83.438600
71 2.828427 14.142136 207.889394 21.213203 155.563492 2.828427 148.492424
72 147.078210 130.107648 63.639610 123.036580 11.313708 147.078210 4.242641
73 28.284271 11.313708 182.433550 4.242641 130.107648 28.284271 123.036580
74 9.899495 7.071068 200.818326 14.142136 148.492424 9.899495 141.421356
75 1.414214 18.384776 212.132034 25.455844 159.806133 1.414214 152.735065
76 21.213203 4.242641 189.504617 2.828427 137.178716 21.213203 130.107648
77 8.485281 8.485281 202.232539 15.556349 149.906638 8.485281 142.835570
78 18.384776 1.414214 192.333044 5.656854 140.007143 18.384776 132.936075
79 12.727922 4.242641 197.989899 11.313708 145.663997 12.727922 138.592929
80 298.399062 281.428499 87.681241 274.357431 140.007143 298.399062 147.078210
50 51 52 53 54 55 56
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51 127.279221
52 138.592929 11.313708
53 196.575685 69.296465 57.982756
54 190.918831 63.639610 52.325902 5.656854
55 196.575685 69.296465 57.982756 0.000000 5.656854
56 172.534055 45.254834 33.941125 24.041631 18.384776 24.041631
57 189.504617 62.225397 50.911688 7.071068 1.414214 7.071068 16.970563
58 120.208153 247.487373 258.801082 316.783838 311.126984 316.783838 292.742207
59 190.918831 63.639610 52.325902 5.656854 0.000000 5.656854 18.384776
60 154.149278 26.870058 15.556349 42.426407 36.769553 42.426407 18.384776
61 193.747258 66.468037 55.154329 2.828427 2.828427 2.828427 21.213203
62 178.190909 50.911688 39.597980 18.384776 12.727922 18.384776 5.656854
63 131.521861 4.242641 7.071068 65.053824 59.396970 65.053824 41.012193
64 72.124892 55.154329 66.468037 124.450793 118.793939 124.450793 100.409163
65 96.166522 223.445743 234.759451 292.742207 287.085353 292.742207 268.700577
66 175.362482 48.083261 36.769553 21.213203 15.556349 21.213203 2.828427
67 196.575685 69.296465 57.982756 0.000000 5.656854 0.000000 24.041631
68 137.178716 9.899495 1.414214 59.396970 53.740115 59.396970 35.355339
69 89.095454 38.183766 49.497475 107.480231 101.823376 107.480231 83.438600
70 127.279221 0.000000 11.313708 69.296465 63.639610 69.296465 45.254834
71 192.333044 65.053824 53.740115 4.242641 1.414214 4.242641 19.798990
72 48.083261 79.195959 90.509668 148.492424 142.835570 148.492424 124.450793
73 166.877200 39.597980 28.284271 29.698485 24.041631 29.698485 5.656854
74 185.261977 57.982756 46.669048 11.313708 5.656854 11.313708 12.727922
75 196.575685 69.296465 57.982756 0.000000 5.656854 0.000000 24.041631
76 173.948268 46.669048 35.355339 22.627417 16.970563 22.627417 1.414214
77 186.676190 59.396970 48.083261 9.899495 4.242641 9.899495 14.142136
78 176.776695 49.497475 38.183766 19.798990 14.142136 19.798990 4.242641
79 182.433550 55.154329 43.840620 14.142136 8.485281 14.142136 9.899495
80 103.237590 230.516811 241.830519 299.813275 294.156421 299.813275 275.771645
57 58 59 60 61 62 63
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58 309.712770
59 1.414214 311.126984
60 35.355339 274.357431 36.769553
61 4.242641 313.955411 2.828427 39.597980
62 11.313708 298.399062 12.727922 24.041631 15.556349
63 57.982756 251.730014 59.396970 22.627417 62.225397 46.669048
64 117.379726 192.333044 118.793939 82.024387 121.622366 106.066017 59.396970
65 285.671140 24.041631 287.085353 250.315801 289.913780 274.357431 227.688384
66 14.142136 295.570635 15.556349 21.213203 18.384776 2.828427 43.840620
67 7.071068 316.783838 5.656854 42.426407 2.828427 18.384776 65.053824
68 52.325902 257.386868 53.740115 16.970563 56.568542 41.012193 5.656854
69 100.409163 209.303607 101.823376 65.053824 104.651804 89.095454 42.426407
70 62.225397 247.487373 63.639610 26.870058 66.468037 50.911688 4.242641
71 2.828427 312.541197 1.414214 38.183766 1.414214 14.142136 60.811183
72 141.421356 168.291414 142.835570 106.066017 145.663997 130.107648 83.438600
73 22.627417 287.085353 24.041631 12.727922 26.870058 11.313708 35.355339
74 4.242641 305.470129 5.656854 31.112698 8.485281 7.071068 53.740115
75 7.071068 316.783838 5.656854 42.426407 2.828427 18.384776 65.053824
76 15.556349 294.156421 16.970563 19.798990 19.798990 4.242641 42.426407
77 2.828427 306.884343 4.242641 32.526912 7.071068 8.485281 55.154329
78 12.727922 296.984848 14.142136 22.627417 16.970563 1.414214 45.254834
79 7.071068 302.641702 8.485281 28.284271 11.313708 4.242641 50.911688
80 292.742207 16.970563 294.156421 257.386868 296.984848 281.428499 234.759451
64 65 66 67 68 69 70
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65 168.291414
66 103.237590 271.529004
67 124.450793 292.742207 21.213203
68 65.053824 233.345238 38.183766 59.396970
69 16.970563 185.261977 86.267027 107.480231 48.083261
70 55.154329 223.445743 48.083261 69.296465 9.899495 38.183766
71 120.208153 288.499567 16.970563 4.242641 55.154329 103.237590 65.053824
72 24.041631 144.249783 127.279221 148.492424 89.095454 41.012193 79.195959
73 94.752309 263.043723 8.485281 29.698485 29.698485 77.781746 39.597980
74 113.137085 281.428499 9.899495 11.313708 48.083261 96.166522 57.982756
75 124.450793 292.742207 21.213203 0.000000 59.396970 107.480231 69.296465
76 101.823376 270.114790 1.414214 22.627417 36.769553 84.852814 46.669048
77 114.551299 282.842712 11.313708 9.899495 49.497475 97.580736 59.396970
78 104.651804 272.943218 1.414214 19.798990 39.597980 87.681241 49.497475
79 110.308658 278.600072 7.071068 14.142136 45.254834 93.338095 55.154329
80 175.362482 7.071068 278.600072 299.813275 240.416306 192.333044 230.516811
71 72 73 74 75 76 77
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72 144.249783
73 25.455844 118.793939
74 7.071068 137.178716 18.384776
75 4.242641 148.492424 29.698485 11.313708
76 18.384776 125.865007 7.071068 11.313708 22.627417
77 5.656854 138.592929 19.798990 1.414214 9.899495 12.727922
78 15.556349 128.693434 9.899495 8.485281 19.798990 2.828427 9.899495
79 9.899495 134.350288 15.556349 2.828427 14.142136 8.485281 4.242641
80 295.570635 151.320851 270.114790 288.499567 299.813275 277.185858 289.913780
78 79
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79 5.656854
80 280.014285 285.671140A short note about ClustGeo package
ClustGeo package is an R package specially designed to support the need of performing spatially constrained cluster analysis. More specifically, it provides a Ward-like hierarchical clustering algorithm called hclustgeo() including spatial/geographical constraints.
In a nutshell, the algorithm uses two dissimilarity matrices D0 and D1 along with a mixing parameter alpha, whereby the value of alpha must be a real number between [0, 1]. D0 can be non-Euclidean and the weights of the observations can be non-uniform. It gives the dissimilarities in the attribute/clustering variable space. D1, on the other hand, gives the dissimilarities in the constraint space. The criterion minimised at each stage is a convex combination of the homogeneity criterion calculated with D0 and the homogeneity criterion calculated with D1.
The idea is then to determine a value of alpha which increases the spatial contiguity without deteriorating too much the quality of the solution based on the variables of interest. This need is supported by a function called choicealpha().
Ward-like hierarchical clustering: ClustGeo
ClustGeo package provides function called hclustgeo() to perform a typical Ward-like hierarchical clustering just like hclust() you learned in previous section.
To perform non-spatially constrained hierarchical clustering, we only need to provide the function a dissimilarity matrix as shown in the code chunk below.

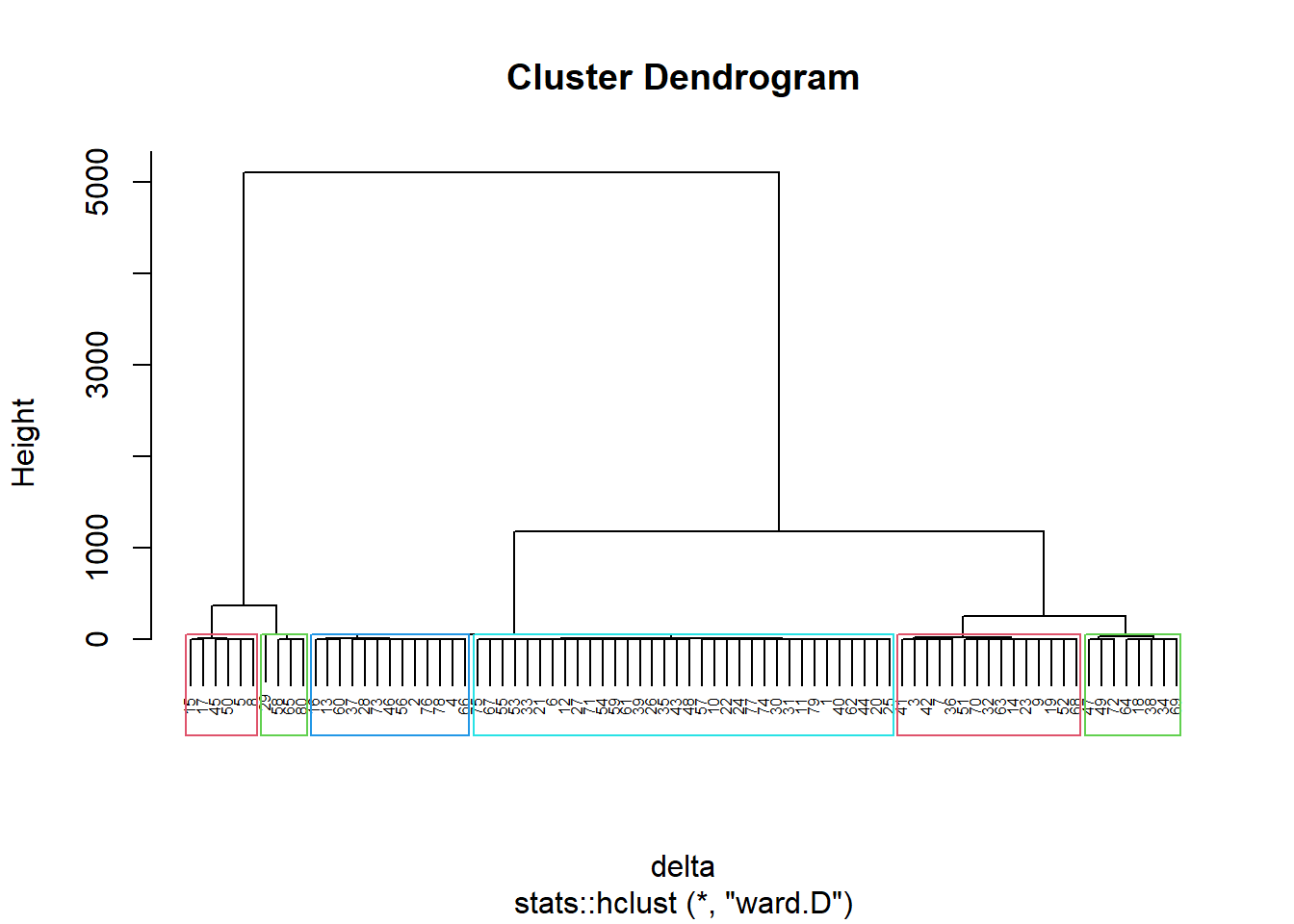

nongeo_cluster <- hclustgeo(proxmat)
plot(nongeo_cluster, cex = 0.5)
rect.hclust(nongeo_cluster,
k = 6,
border = 2:5)

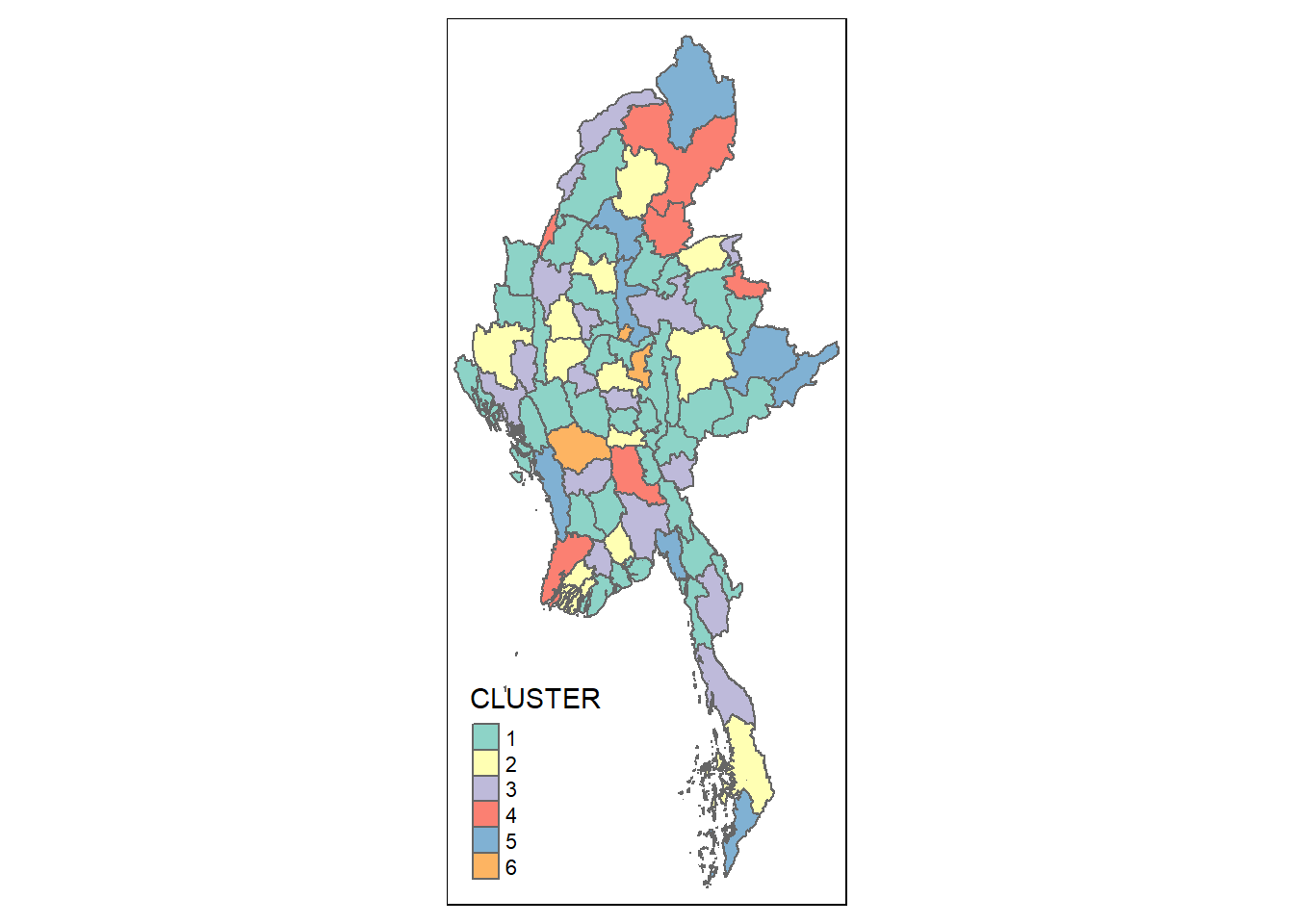

class(nongeo_cluster)[1] "hclust"Mapping the clusters formed
groups <- as.factor(cutree(nongeo_cluster, k=6))myanmar_ngeo_cluster <- cbind(mmr_shp_mimu_2, as.matrix(groups)) %>%
rename(`CLUSTER` = `as.matrix.groups.`)qtm(myanmar_ngeo_cluster, "CLUSTER")
Spatially Constrained Hierarchical Clustering
Before we can perform spatially constrained hierarchical clustering, a spatial distance matrix will be derived by using st_distance() of sf package.
dist <- st_distance(mmr_shp_mimu_2, mmr_shp_mimu_2)
distmat <- as.dist(dist)Notice that as.dist() is used to convert the data frame into matrix.
Next, choicealpha() will be used to determine a suitable value for the mixing parameter alpha as shown in the code chunk below.

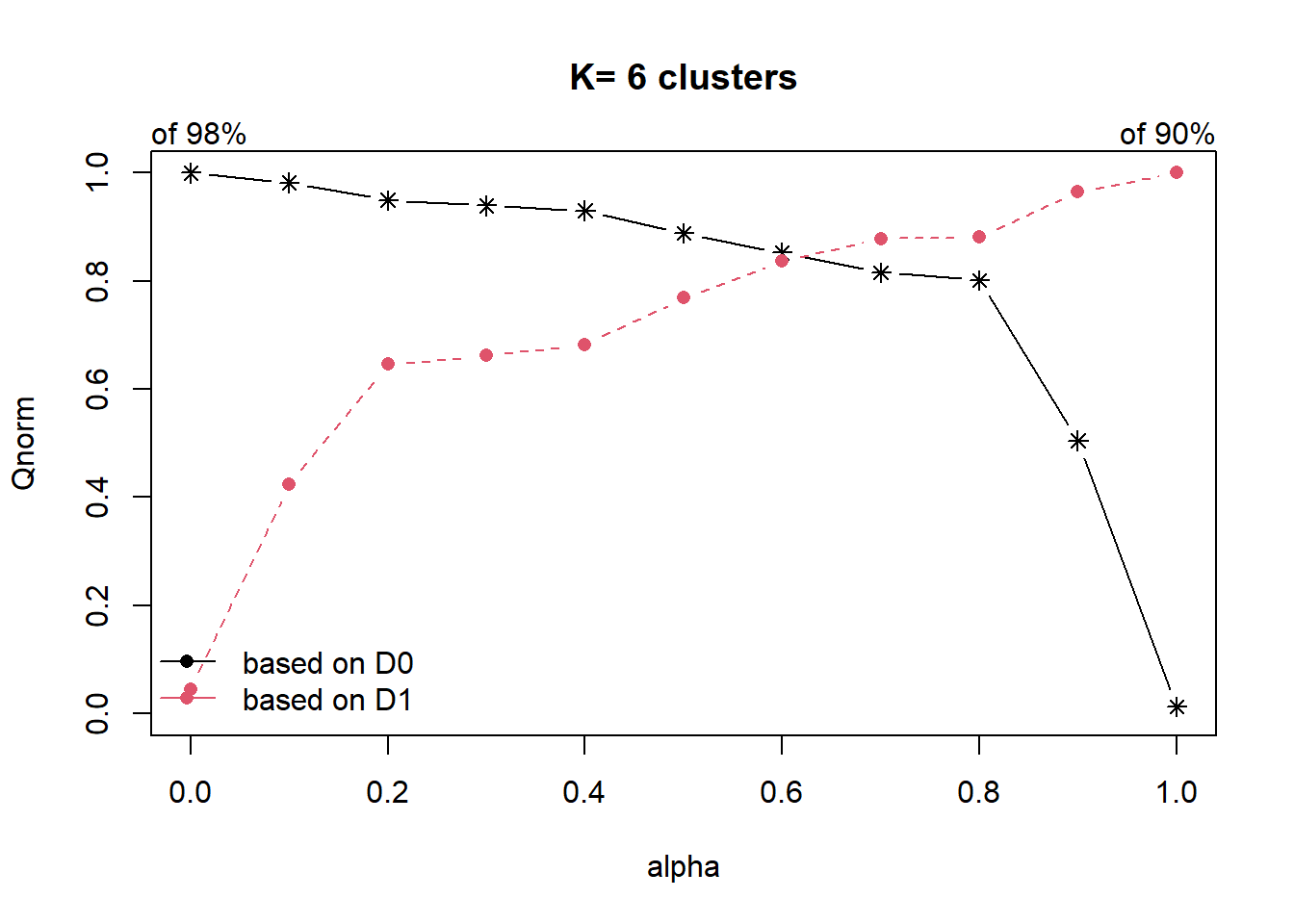

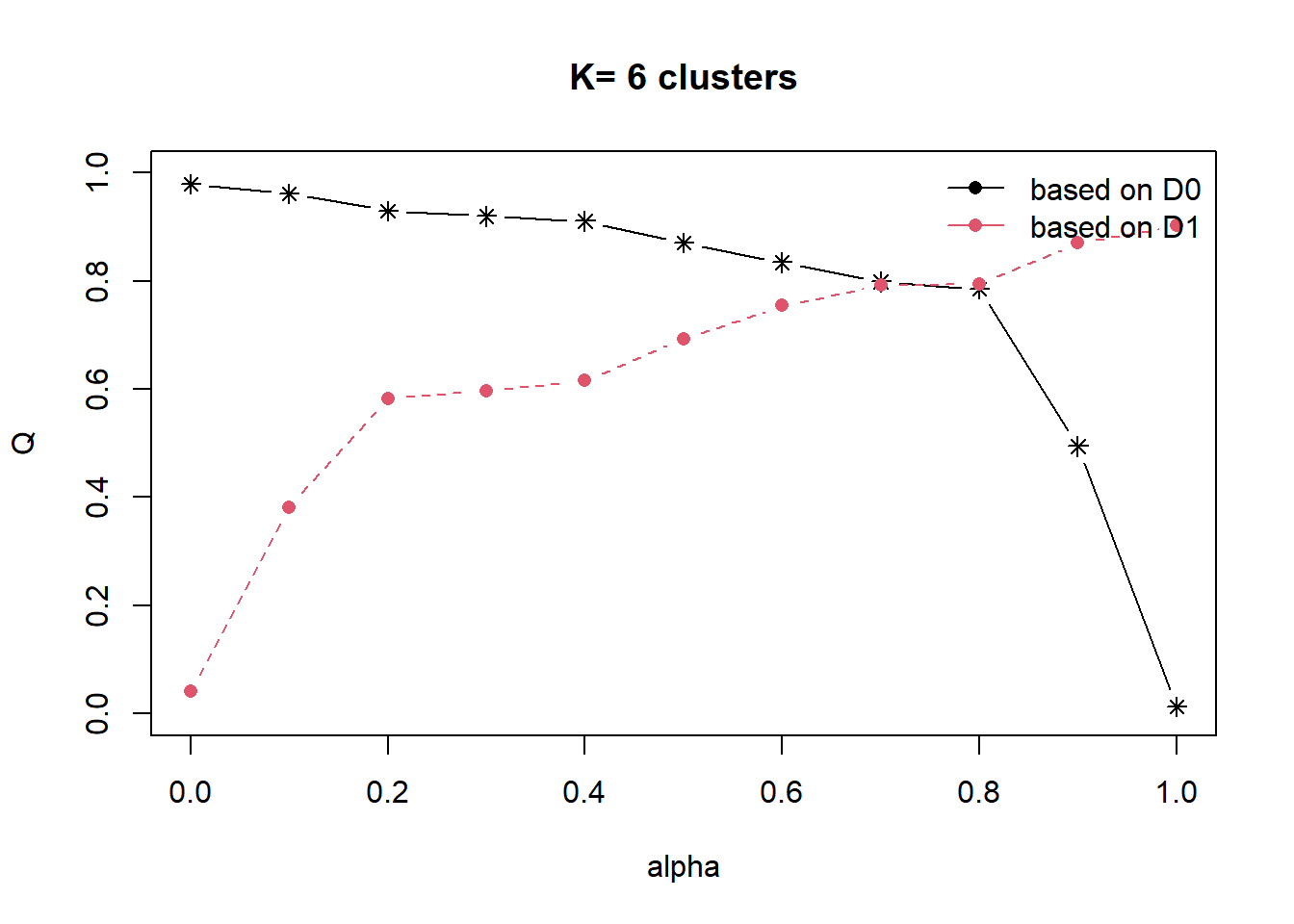

cr <- choicealpha(proxmat, distmat, range.alpha = seq(0, 1, 0.1), K=6, graph = TRUE)
With reference to the graphs above, alpha = 0.6 will be used as shown in the code chunk below.
clustG <- hclustgeo(proxmat, distmat, alpha = 0.6)Next, cutree() is used to derive the cluster object.
groups <- as.factor(cutree(clustG, k=6))We will then join back the group list with mmr_shp_mimu polygon feature data frame by using the code chunk below.
MMR_sf_Gcluster <- cbind(mmr_shp_mimu_2, as.matrix(groups)) %>%
rename(`CLUSTER` = `as.matrix.groups.`)We can now plot the map of the newly delineated spatially constrained clusters.
qtm(MMR_sf_Gcluster, "CLUSTER")
Visual Interpretation of Clusters
Visualising individual clustering variable
Code chunk below is used to reveal the distribution of a clustering variable (i.e Battles_2022_Incidents) by cluster.
#ggplot(data = myanmar_ngeo_cluster,
# aes(x = CLUSTER, y = Battles_2022_Incidents)) +
# geom_boxplot()References
Main reference: Kam, T.S. (2024). Geographical Segmentation with Spatially Constrained Clustering Techniques
